EMS and TENS: Different Tools for Different Jobs, and When They Actually Work

Electrical stimulation devices consistently produce two categories of confusion. The first is the confusion between TENS (Transcutaneous Electrical Nerve Stimulation) and EMS (Electrical Muscle Stimulation), which are related in that both use electrodes and pulsed current, but different in almost every other respect — different frequencies, different targets, different indications, different evidence bases. The second confusion is the claim that a stimulator can substitute for exercise. It cannot, mostly. But it can do a few real things well.

This article separates the two modalities, walks through what each is genuinely useful for, and where the marketing overreaches — particularly the "lay on the couch and build abs" claims that have followed EMS since it entered the consumer market.

What TENS is doing

TENS delivers low-amplitude, high-frequency electrical pulses (typically 50 to 100 Hz for conventional TENS) through skin electrodes to the sensory nerves underlying the treated area. The primary intended target is not the muscle underneath — the current is too low to produce meaningful contraction — but the sensory nerve fibers.

The proposed mechanisms:

• Gate control theory of pain (Melzack and Wall 1965). The high-frequency, non-painful sensory input from TENS activates large-diameter A-beta nerve fibers, which partially inhibit the transmission of pain signals from smaller nociceptor fibers at the level of the dorsal horn.
• Endogenous opioid release with low-frequency TENS. Low-frequency TENS (below 10 Hz) at higher amplitudes appears to trigger release of endogenous opioids in the central nervous system, producing a longer-lasting analgesic effect that can persist beyond the treatment window.

What the TENS evidence supports

Acute post-operative pain — modestly supported

A large Cochrane review (Bjordal et al. 2003) and multiple follow-ups found TENS reduces analgesic requirements and pain scores in post-surgical patients, particularly for thoracic and abdominal surgery. Effect sizes are meaningful — a 25 to 30 percent reduction in opioid requirement in some trials — but not sufficient as sole analgesia for significant surgical pain.

Chronic musculoskeletal pain — modestly supported

Johnson and Martinson (2007) meta-analyzed 38 trials of TENS for chronic musculoskeletal pain and found a mean reduction of about 4 points on a 100-point pain scale — modest but real. The Cochrane review on TENS for chronic low back pain in 2018 found evidence too limited to support strong conclusions. The evidence is not clean but it consistently shows small-to-moderate effects.

Osteoarthritis pain — modestly supported

Multiple trials in knee osteoarthritis show TENS produces meaningful reductions in pain and improvements in function over 4 to 8 weeks of use. Effect sizes comparable to over-the-counter analgesics without the systemic side effects.

Labor pain, dysmenorrhea, dental pain — modestly supported

Multiple trials support TENS as a component of pain management in these contexts. Not a replacement for other modalities in severe cases but a defensible adjunct.

Neuropathic pain — weakly supported

TENS for diabetic neuropathy, post-herpetic neuralgia, and similar conditions has smaller and more variable effects than TENS for musculoskeletal pain. The mechanism may be less effective when the underlying neural substrate itself is dysfunctional.

What TENS is not

TENS is a pain-modulation tool, not a rehabilitation tool. It does not build muscle, does not accelerate tissue healing, does not "break up" scar tissue. The current is too low and the target is the wrong nerve population. If a marketing page for a TENS unit claims it will build biceps or reduce cellulite, the manufacturer is either confused about their own device or hoping you are.

What EMS is doing

EMS delivers higher-amplitude electrical pulses (typically 30 to 100 Hz, sometimes higher for specialized applications) at intensities sufficient to depolarize motor nerve axons and produce muscle contraction. The current bypasses the volitional control system — the brain does not send the signal — and directly recruits motor units.

The recruitment pattern is different from voluntary contraction. Voluntary contraction preferentially recruits smaller, slow-twitch motor units first (Henneman's size principle), scaling up to larger fast-twitch units as force demand rises. EMS partially bypasses this ordering and recruits both small and large motor units earlier in the contraction, though the exact recruitment pattern depends on electrode placement, current intensity, and pulse waveform.

What the EMS evidence supports

Rehabilitation after immobilization or surgery — well supported

EMS applied to muscle that cannot be voluntarily contracted (post-ACL surgery, post-fracture in a cast, in the ICU on prolonged bed rest) reduces the muscle atrophy that would otherwise occur. This is the strongest and most clinically established EMS indication. Bax and colleagues' 2005 meta-analysis of EMS in ACL rehabilitation found meaningful improvements in quadriceps strength recovery when EMS was added to standard physiotherapy.

Neuromuscular reeducation post-stroke — well supported

Functional electrical stimulation applied to affected limbs after stroke, timed with attempted volitional movement, improves motor recovery outcomes. This is a mainstream neurological rehabilitation modality.

Strength gain in already-healthy trained subjects — mixed

Filipovic and colleagues (2011) reviewed EMS strength training in athletes and found small-to-moderate strength improvements when EMS was added to voluntary training, particularly for maximum-force and rate-of-force-development outcomes. The effects appear to be additive rather than substitutive — EMS on top of training beats EMS alone.

Muscle mass gain in healthy adults through EMS alone — weakly supported

The claim that lying on a couch with electrodes attached will produce meaningful muscle mass gain in a healthy person is not strongly supported. Some studies show small increases in muscle cross-sectional area with high-volume EMS protocols in previously untrained subjects — the same effect any novel resistance stimulus would produce, at lower magnitudes and with much higher session-to-session subjective cost.

Fat loss with EMS abdominal belts — not supported

The FTC has repeatedly acted against manufacturers of EMS "ab belts" for false and misleading claims. Local fat loss from EMS is not a mechanism that exists. If EMS produces any weight loss, it is through the small energy expenditure of the contractions themselves — an amount trivially small compared to any actual movement.

Whole-body EMS (WB-EMS)

A specialized version of EMS applies electrodes across most major muscle groups simultaneously, typically during light bodyweight movement, in supervised studio sessions. Some evidence supports WB-EMS as a time-efficient stimulus for maintaining muscle mass and strength in populations who cannot or will not do conventional resistance training — older adults, some rehab populations.

Two honest cautions on WB-EMS: the sessions produce high muscle stress in a short window, and cases of exertional rhabdomyolysis have been reported when protocols pushed intensity too high in undertrained users. WB-EMS supervised in a professional setting with progressive dosing is defensible; unsupervised aggressive use is a legitimate injury risk.

How to know which one you need

Buy TENS if you want

• Pain management for a chronic musculoskeletal condition
• Adjunct analgesia to reduce reliance on oral pain medication
• Post-operative pain management (usually rented from the surgical facility)
• Labor pain management (typically clinic-supplied)

Buy EMS if you want

• Post-surgical or post-immobilization rehabilitation to reduce muscle atrophy
• Supplementary strength training already added to conventional lifting
• A stimulus during periods when voluntary training is impossible

Combined units

Many consumer stimulators sell both TENS and EMS modes in a single device. The hardware is similar enough that the combined unit is legitimate. Buying one device gives you both tools; buying two dedicated devices offers no real advantage.

What to look for in a stimulator

• FDA registration for the intended indication. TENS units for pain are Class II medical devices. Registration is not optional for a legitimate manufacturer.
• Adjustable pulse width, frequency, and amplitude. Different clinical protocols use different parameters. A locked-in single-preset device limits its usefulness.
• Multiple channels. A two-channel unit lets you treat two locations simultaneously or use two electrode pairs on a single large muscle for better current distribution.
• Rechargeable battery and pad life. Electrode pads lose adhesion and conductivity over 20 to 40 uses depending on skin oil and care. Budget for pad replacement.
• Program library or preset protocols. Convenience feature; not a substitute for adjustability.

Contraindications and safety

Electrical stimulation has real contraindications:

• Pacemakers or implanted cardiac devices. Do not use TENS or EMS. The current can interfere with pacing.
• Pregnancy. Do not use on the abdomen or lower back during pregnancy without specific medical direction.
• Over the carotid sinus, front of the neck, or across the chest. Cardiovascular risk.
• Over active malignancy, deep vein thrombosis, or active infection. Standard contraindications.
• On broken skin or over recent surgical sites. Skip until healed.
• Epilepsy. Individual medical guidance required.

These are not marketing warnings — they are real. A TENS unit is a low-current device but the electricity does interact with the nervous system in ways that matter for these populations.

Electrode placement matters more than you think

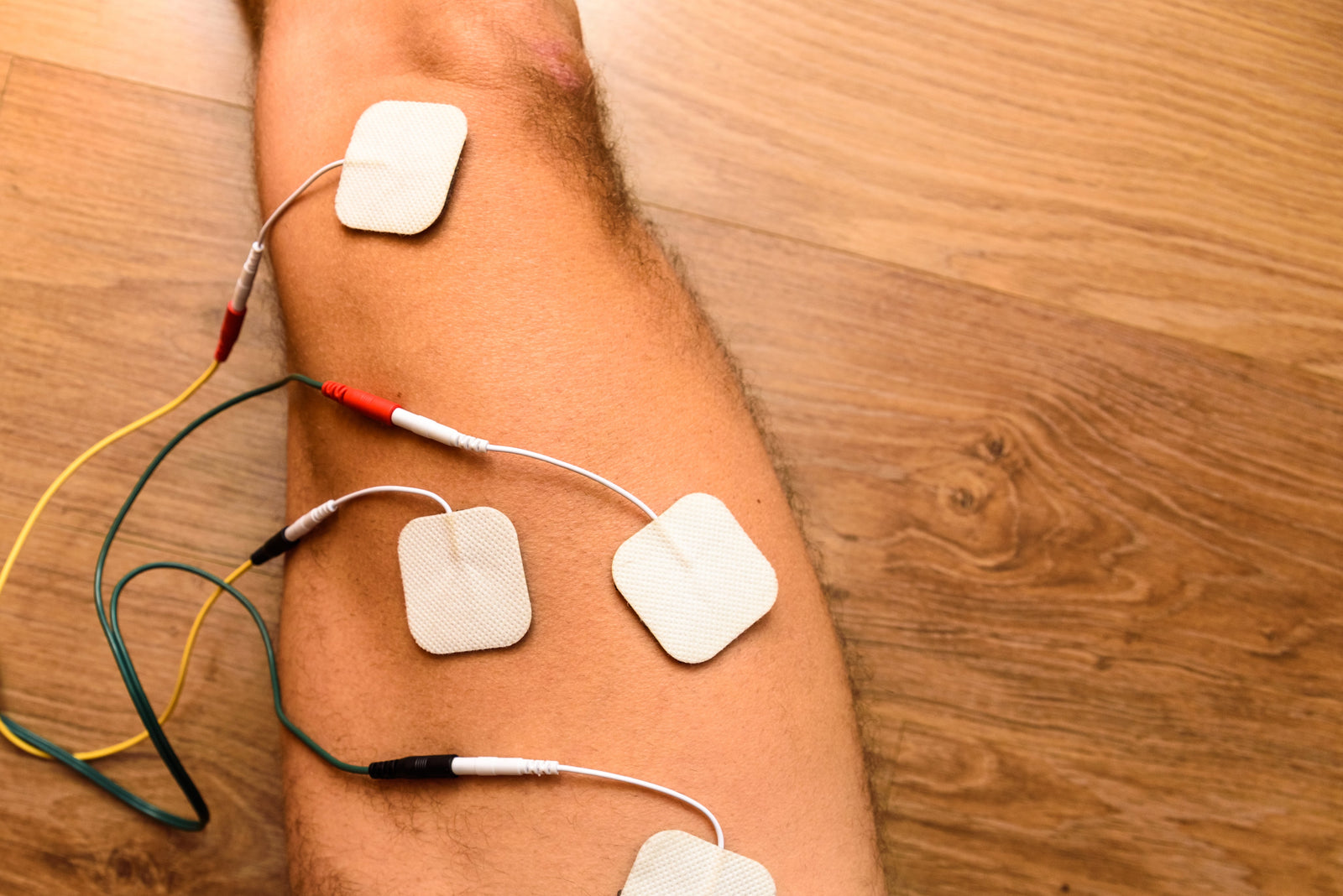

Both TENS and EMS depend critically on electrode placement. For TENS, the electrodes need to be positioned so that the current path passes through the region generating the pain signal. For EMS, the electrodes need to be over the motor point of the target muscle — the location where the motor nerve enters and produces the strongest contraction with the least current. Poor placement dramatically reduces effectiveness and often causes users to conclude the device does not work when the device is fine and the placement is wrong.

The manufacturer's placement guide is a starting point. Any physical therapist or trainer familiar with the modality can improve on it substantially. For chronic use, one session with a professional to identify the right placement locations is worth more than any device feature.

A protocol for a stimulator you already own

TENS for chronic musculoskeletal pain

1. High-frequency, conventional TENS: 80 to 100 Hz, pulse width 50 to 100 microseconds, amplitude at the highest comfortable non-painful sensation.
2. 20 to 30 minutes per session, up to several times daily.
3. Reassess at four weeks. If no meaningful benefit, try low-frequency "acupuncture-like" TENS: 2 to 4 Hz, higher amplitude to produce visible small muscle twitches, 20 to 30 minutes.

EMS for rehabilitation after immobilization

1. Consult with the treating physical therapist. Placement matters critically for post-surgical use.
2. Typical protocol: 50 to 75 Hz stimulation frequency, pulse width 250 to 450 microseconds, on/off duty cycle of 10 seconds on and 20 to 50 seconds off to prevent fatigue.
3. Amplitude increased to produce a strong visible contraction without pain.
4. Sessions of 15 to 30 minutes, 3 to 5 times per week, alongside conventional rehabilitation exercise.

EMS as a strength training adjunct

1. After conventional resistance training on the target muscle group, not as a substitute.
2. Similar parameters to rehabilitation protocol but with higher amplitude tolerated for maximum recruitment.
3. 2 to 3 sessions per week per muscle group, 15 to 20 minutes each.
4. Additive effects on strength are small; do not expect to skip the gym.

Realistic expectations for the first month

Both modalities produce their strongest documented effects with sustained daily or near-daily use over 2 to 6 weeks. Effects during a single early session are typically modest. A first-week user of a TENS unit expecting a dramatic reduction in chronic pain will usually be disappointed. What produces the meaningful pain-score reductions in the trial base is consistent daily use across weeks — the neural modulation appears to accumulate rather than fully appear per session.

Set an evaluation window of at least 4 weeks. Track pain or strength scores at baseline and at the end of the window. If nothing has moved, adjust placement, parameters, or frequency before concluding the modality does not work. Most "the device did nothing" reviews online reflect protocol setup problems rather than device failure.

The honest bottom line

TENS is a well-supported pain-modulation tool for specific indications with modest effect sizes. EMS is a well-supported rehabilitation tool for muscle atrophy and neuromuscular reeducation, and a moderately supported adjunct for strength training in already-trained subjects. Neither device substitutes for exercise, produces meaningful fat loss on its own, or delivers the transformative results consumer marketing suggests. Buy a stimulator for a specific clinical indication that matches the modality, place the electrodes correctly, and stick to the protocol parameters that match the evidence. The tools work, honestly and modestly, for the jobs they were actually designed to do.
